sRobotics - Selfbalancing Robot

A two-wheel self-balancing robot integrating embedded control, inertial sensing, motor actuation, and real-time stabilization logic.

Project Overview

sRobotics - Selfbalancing Robot is a mechatronics project focused on developing a compact two-wheel robotic platform capable of maintaining balance using sensor feedback, embedded control logic, and real-time motor response.

The system combines an inertial measurement unit, microcontroller, motor driver, DC motors, and control firmware to continuously estimate tilt angle and correct the robot position. The project emphasizes closed-loop control, rapid prototyping, embedded programming, and practical robotics integration.

Core Discipline

Robotics, embedded systems, feedback control, sensor integration, and motor actuation.

Tools Used

Arduino/C++, MPU6050, motor driver hardware, CAD modeling, wiring diagrams, and system debugging.

Design Focus

Balance control, real-time sensor feedback, clean wiring, compact packaging, and stable robot motion.

Build Images

sRobotics Build Documentation

Images showing the robot frame, electronics placement, and assembled self-balancing platform.

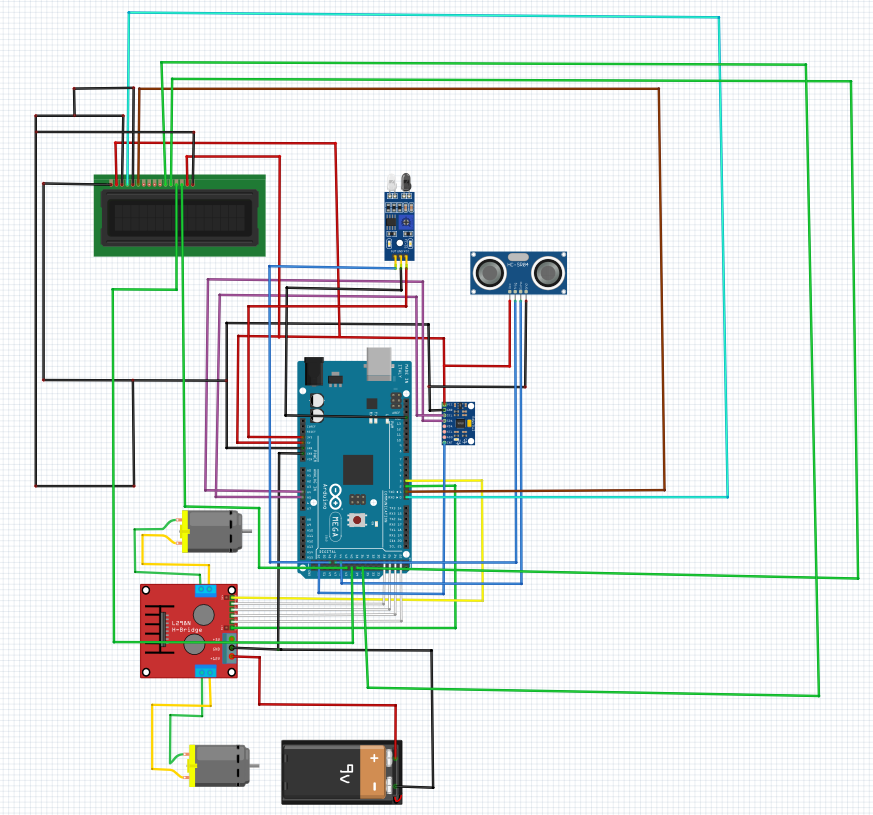

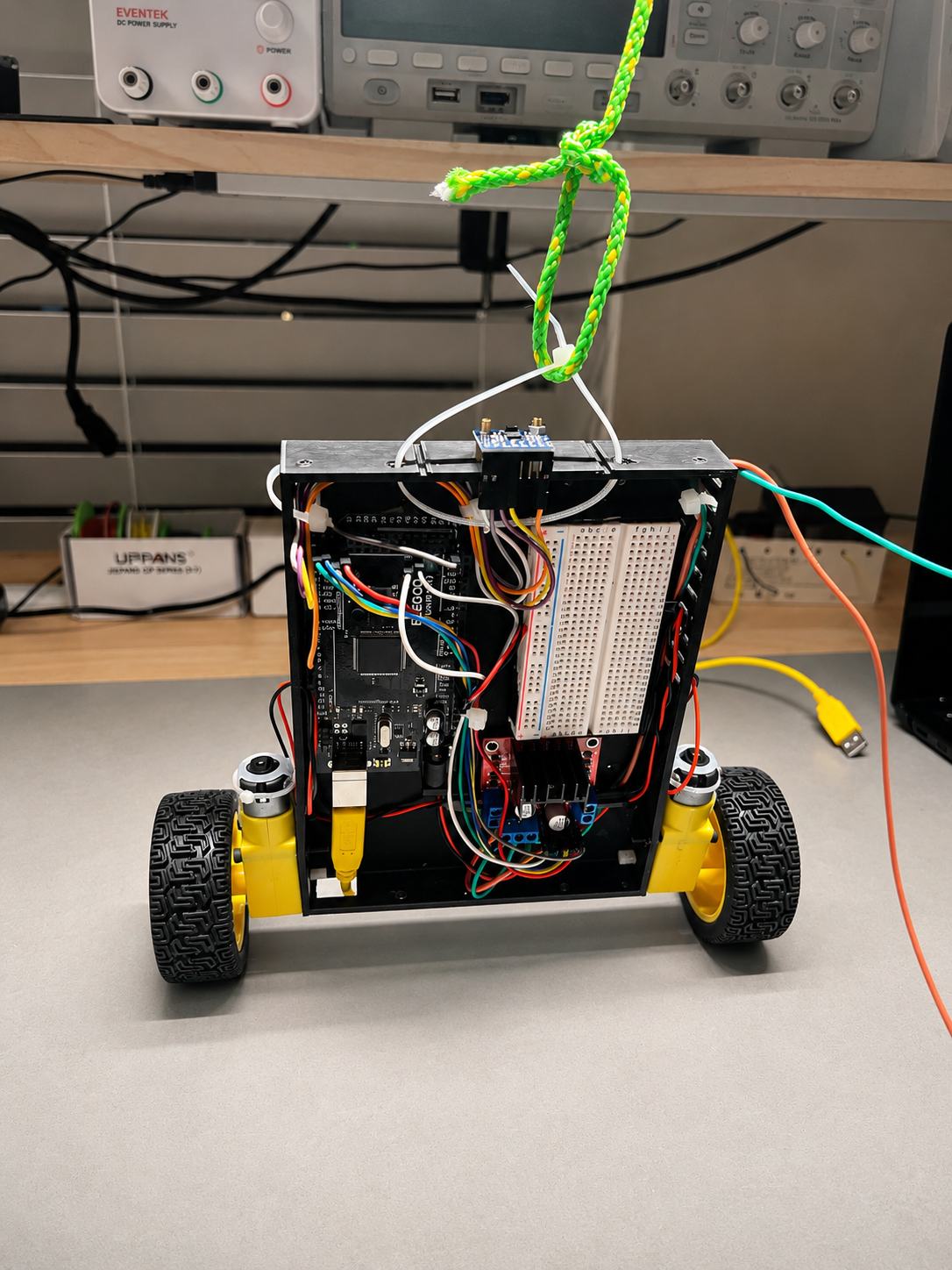

Image 01 Internal Hardware

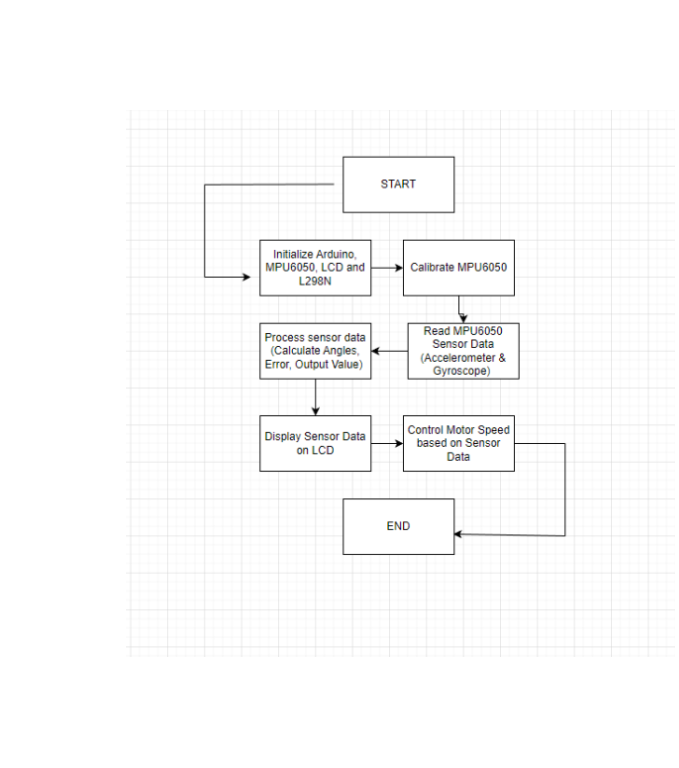

Image 02 Control Layout

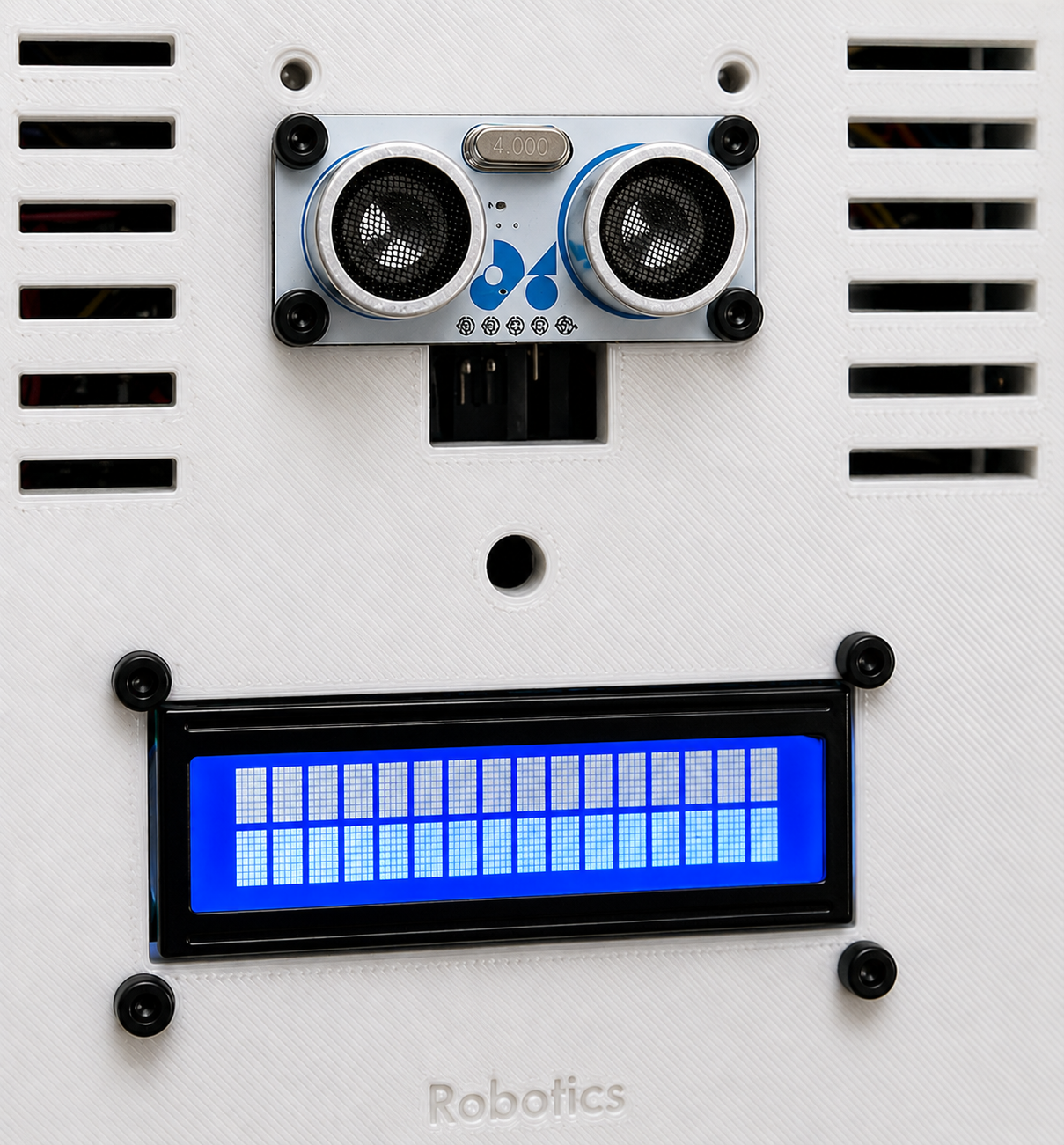

Image 03 LCD Display

Robot Demo

Self-Balancing Test

Demonstration of the robot actively correcting tilt angle and maintaining balance using closed-loop motor control.

Control Response

Motion Calibration Demo

A closer look at the robot calibration process.

sRobotics Firmware Preview

#include <Arduino.h>
#include <MPU6050_tockn.h>
#include <Wire.h>
#include <LiquidCrystal.h>

// Specify the LCD Pinout

const int rs = 3;
const int en = 4;
const int d4 = 5;
const int d5 = 6;
const int d6 = 7;
const int d7 = 8;

int cols = 16;
const int rows = 2;

LiquidCrystal lcd(rs, en, d4, d5, d6, d7);

MPU6050 mpu6050(Wire);

float offsetAngleY = 0.0f;
uint32_t timer = 0;

/*
Motor A truth table
ENA	IN1	IN2	 Description
0	  N/A	N/A	 Motor A is off
1	  0	  0	   Motor A is stopped (brakes)
1	  0	  1	   Motor A is on and turning backwards
1	  1	  0	   Motor A is on and turning forwards
1	  1	  1	   Motor A is stopped (brakes)
*/

#define MIN_SPEED_MOTOR_A 0 // 70
#define MAX_SPEED_MOTOR_A 255
#define MIN_SPEED_MOTOR_B 0 // 70
#define MAX_SPEED_MOTOR_B 255
#define MIN_SPEED_MOTOR 55
#define MAX_SPEED_MOTOR 150

// Initializing all of our pins for the L298N driver module
const int ENA = 44;
const int IN1 = 23;
const int IN2 = 25;
const int ENB = 46;
const int IN3 = 27;
const int IN4 = 29;

// Initializing motor speed variables
int motorSpeed_A = 0;
int motorSpeed_B = 0;
int motorDirection = 0;

// Initialize controller parameters
float desiredSetpoint = 0.0f;
float error = 0.0f;

float Kp = 1.25f;
float proportional = 0.0f;
unsigned long lastTime = 0.0f;
float output = 55.0f;
bool controllerSwitch = 1;

unsigned long timingInterval = 25;
float acceptableRange = 0.0f;

float kd = 0.025f;
float Kd = kd / (timingInterval / 1000.0f);
float derivative = 0.0f;
float lastError = 0.0f;

// float k = 1.0f;

// NOTES
// Startup motor 50
// Can go down to 35
// But must start at 50
// TUrning direction does not work for both motors equally at 30
// Right motor spins faster than left motor
// 70 min turn on for left motor
// 70 min turn on for right motor

// Initializing Liquid Crystal Display Pinout

void displayDataToLCD(uint8_t column, const char *str, int decimalPlacement, float data, float lastData);

void setup()
{
  // Initialize Serial communication
  Serial.begin(115200);

lcd.begin(16, 2);

// while (!Serial)
  //   ; // Leonardo: wait for serial monitor

// Serial.println("Serial port ready.");

// Setting MCU pins to OUTPUT for Motor A
  pinMode(ENA, OUTPUT);
  pinMode(IN1, OUTPUT);
  pinMode(IN2, OUTPUT);
  // Initialize motor A to be off
  digitalWrite(ENA, LOW);

// Setting MCU pins to OUTPUT for Motor B
  pinMode(ENB, OUTPUT);
  pinMode(IN3, OUTPUT);
  pinMode(IN4, OUTPUT);
  // Initialize motor B to be off
  digitalWrite(ENB, LOW);

Wire.begin();
  mpu6050.begin();
  mpu6050.calcGyroOffsets(false);

pinMode(LED_BUILTIN, OUTPUT);
  digitalWrite(LED_BUILTIN, 0);

offsetAngleY = mpu6050.getAngleY();

for (int i = 0; i < 3; i++)
  {
    static bool blink = 1;
    static bool ledStatus = 1;
    static int counter = 0;

Serial.print("Countdown time = ");
    Serial.println(3 - i);

counter = 3 - i;

while (blink)
    {
      digitalWrite(LED_BUILTIN, ledStatus);
      counter--;
      delay(500);
      if (counter <= 0)
      {
        blink = 0;
        ledStatus = 1;
      }
      else
      {
        ledStatus = !ledStatus;
      }
    }

blink = 1;
  }
}

void loop()
{

unsigned long currentTime = millis();
  unsigned long elapsedTime = currentTime - lastTime;
  if (elapsedTime >= timingInterval)
  {
    mpu6050.update();

// Compute
    float actual = mpu6050.getAngleY() - offsetAngleY;

// float actual = (float)(kalAngleY)-offsetAngleY_kalman;

// sp = 10
    // act = 5
    // err = 10 - 5 = 5

// sp = -10
    // act = 5
    // errpr -10 - 5 = -15

error = desiredSetpoint - actual;
    proportional = Kp * error;
    derivative = Kd * (error - lastError);

output = output + proportional + derivative;
    output = constrain(output, MIN_SPEED_MOTOR, MAX_SPEED_MOTOR);

lastError = error;

if (actual > acceptableRange)
    {
      // If actual is > 0 then leaning back , move backwards

motorDirection = 0;

digitalWrite(IN1, LOW);
      digitalWrite(IN2, HIGH);

digitalWrite(IN3, LOW);
      digitalWrite(IN4, HIGH);

// k = 0.8;
    }
    else if (actual < -1 * acceptableRange)
    {
      // If actual is < 0 then leaning forward, move forward

motorDirection = 1;

digitalWrite(IN1, HIGH);
      digitalWrite(IN2, LOW);

digitalWrite(IN3, HIGH);
      digitalWrite(IN4, LOW);

// k = 0.9;
    }
    else
    {
      digitalWrite(IN1, LOW);
      digitalWrite(IN2, LOW);
      digitalWrite(ENA, 0);

digitalWrite(IN3, LOW);
      digitalWrite(IN4, LOW);
      digitalWrite(ENB, 0);
    }

// static float lastActual = 0.0f;
    // static float lastDesiredSetpoint = 0.0f;
    // displayDataToLCD(0, "pv=", 100, actual, lastActual);
    // displayDataToLCD(9, "sp=", 100, desiredSetpoint, lastDesiredSetpoint);

int decimalPlacement = 100;
    int truncatedActual = actual * decimalPlacement;
    int truncatedDesiredSetpoint = desiredSetpoint * decimalPlacement;
    int truncatedError = error * decimalPlacement;
    int truncatedOutput = output * decimalPlacement;

lcd.clear();
    lcd.setCursor(0, 0);
    lcd.print("pv=");
    lcd.print(truncatedActual / decimalPlacement);
    lcd.print(".");
    lcd.print(abs(truncatedActual) % decimalPlacement); // Display the decimal digit

lcd.setCursor(0, 1);
    lcd.print("sp=");
    lcd.print(truncatedDesiredSetpoint / decimalPlacement);
    lcd.print(".");
    lcd.print(abs(truncatedDesiredSetpoint) % decimalPlacement); // Display the decimal digit

lcd.setCursor(8, 0);
    lcd.print("err=");
    lcd.print(truncatedError/ decimalPlacement);
    lcd.print(".");
    lcd.print(abs(truncatedError) % decimalPlacement); // Display the decimal digit

lcd.setCursor(8, 1);
    lcd.print("out=");
    lcd.print(truncatedOutput / decimalPlacement);
    lcd.print(".");
    lcd.print(abs(truncatedOutput) % decimalPlacement); // Display the decimal digit

// Serial.print("sp=");
    // Serial.print(desiredSetpoint);
    // Serial.print("\t");

// Serial.print("act=");
    // Serial.print(actual);
    // Serial.print("\t");

// Serial.print("dir=");
    // Serial.print(motorDirection);
    // Serial.print("\t");

// Serial.print("err=");
    // Serial.print(error);
    // Serial.print("\t");

// Serial.print("prop=");
    // Serial.print(proportional);
    // Serial.print("\t");

// Serial.print("der=");
    // Serial.print(derivative);
    // Serial.print("\t");

// Serial.print("out=");
    // Serial.print(output);
    // Serial.println();

analogWrite(ENA, static_cast<int>(abs(output)));          // l and o (left motor)
    analogWrite(ENB, static_cast<int>(abs(output * 0.925f))); // right motor

lastTime = millis();
  }
}

void displayDataToLCD(uint8_t column, const char *str, int decimalPlacement, float data, float lastData)
{

float number = data;
  int truncated = number * decimalPlacement;
  lcd.setCursor(0, column);                     // Set the cursor to the second line
  lcd.print(str);                               // Print a label
  lcd.print(truncated / decimalPlacement);      // Display the truncated number
  lcd.print(".");                               // Print the decimal point
  lcd.print(abs(truncated) % decimalPlacement); // Display the decimal digit
}
